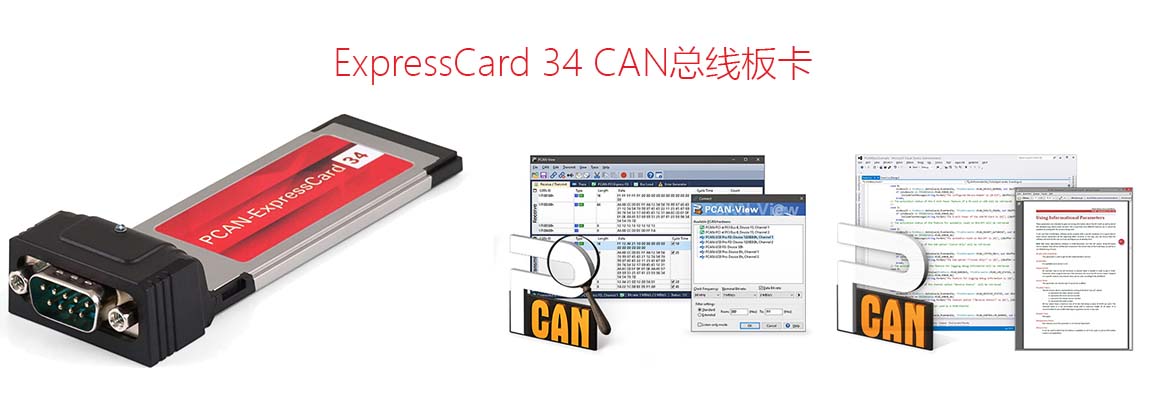

PCAN-ExpressCard 34：ExpressCard/34轉CAN接口卡

PCAN-ExpressCard 34轉CAN總線板卡可把CAN總線連接到帶有ExpressCard插槽的嵌入式電腦或筆記本電腦上。電腦和CAN之間的電氣隔離電壓達到300伏特。

整套也包含CAN總線監視軟件PCAN-View for Windows和用于開發CAN總線連接應用程序的編程接口PCAN-Basic軟件。

規格

適用于ExpressCard插槽的CAN卡
常規ExpressCard/34 (兼容ExpressCard/54插槽)
高速CAN通道 (ISO 11898-2)
比特率從5 kbit/s最大至1 Mbit/s
符合CAN規范2.0A (11-bit ID) 和 2.0B (29-bit ID)
通過D-Sub，9-引腳連接器(符合CiA 303-1)連接到CAN總線
CAN控制器 (SJA1000可兼容)的FPGA實施
NXP PCA82C251 CAN收發器
CAN連接上的電氣隔離達到300 V
擴展工作溫度范圍 -40 to 85 °C (-40 to 185 °F)

D-Sub引腳分布圖

引腳	引腳分配
1	無連接
2	CAN-L
3	GND
4	無連接
5	無連接
6	GND
7	CAN-H
8	無連接
9	無連接

發貨清單：

PCAN-ExpressCard 34 CAN接口卡
設備驅動 for Windows? 10, 8.1, 7 and Linux (32/64-bit)
PCAN-View for Windows?CAN總線監視軟件
PCAN-Basic編程接口用于開發CAN總線連接應用程序
汽車領域標準化協議編程接口
PDF格式的說明書

貨號：IPEH-003004

下載

Device driver setup for Windows PEAK-System installation package for device drivers and tools for Windows? 10, 8.1, 7 (32/64-bit) for our PC interfaces.	Download
Device driver for Linux Device drivers for PEAK CAN interfaces from Kernel 2.4 and higher.	Website
PCAN-ExpressCard 34 manual	English
PCAN-View Windows? software for displaying, transmitting, and recording CAN and CAN FD messages	Download
PCAN-Basic API API for the development of applications with CAN and CAN FD connections for Windows? 10, 8.1, 7 (32/64-Bit)	Download
PCAN-Basic API (Linux) API for the development of applications with CAN connection for Linux	Download
PCAN-CCP API API for the development of software for the communication with ECUs according to the CAN Calibration Protocol (CCP)	Download
PCAN-XCP API API for the development of software for the communication with ECUs according to the Universal Measurement and Calibration Protocol (XCP)	Download
PCAN-ISO-TP API API for the transfer of data packages according to ISO-TP (ISO 15765-2)	Download
PCAN-UDS API API to communicate with control devices according to UDS (ISO 14229-1)	Download
PCAN-OBD-2 API API for the vehicle diagnostics according to OBD-2 (ISO 15765-4)	Download
PCAN-PassThru API Pass-Thru API and connection of Pass-Thru software to PEAK CAN interfaces. Installation for Windows? 10, 8.1, 7 (32/64-bit) includes interface DLLs, a configuration software, the PCAN-Basic API, and the PCAN-ISO-TP API. The download also contains the documentation (English).	Download
BaudTool Windows? software for calculating the BTR0/BTR1 baud rate register	Download
