PCAN-miniPCI：Mini PCI轉CAN接口卡

這款PCAN-miniPCI CAN卡能夠把嵌入式電腦和裝備Mini PCI插槽的筆記本電腦連接到CAN總線網絡。

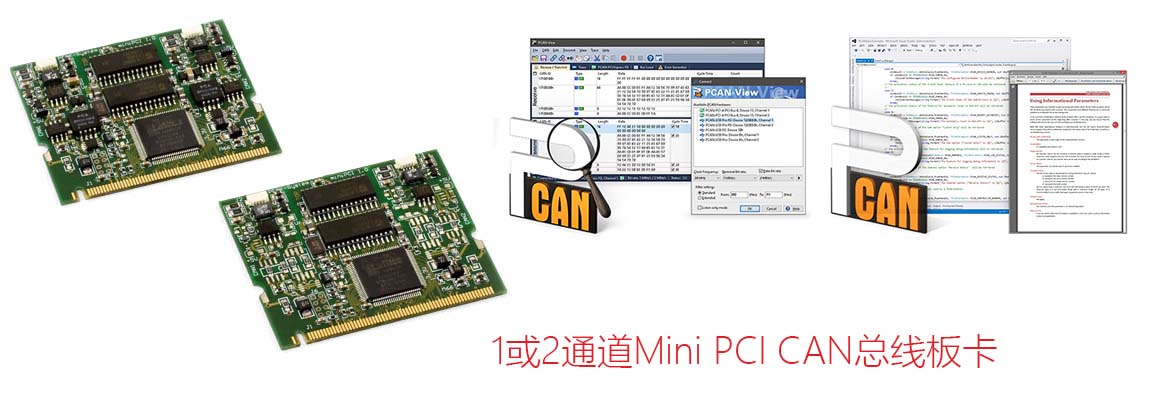

該CAN卡備有單通道和雙通道版本。光電解耦版本也保證在電腦和CAN之間的電隔離達到300伏。

套裝內含CAN監視軟件PCAN-View for Windows和編程接口PCAN-Basic。

規格

CAN接口，用于Mini PCI插槽
1 or 2 High-speed CAN channels (ISO 11898-2)
經由連接電纜和D-Sub, 9-引腳 (符合CiA 303-1)連接CAN總線
比特率從40 kbit/s 至 1 Mbit/s
符合CAN規范2.0A (11-bit ID)和2.0B (29-bit ID)
NXP SJA1000 CAN控制器, 16MHz時鐘頻率
TJA1040 CAN收發器
通過焊接的跨接線，可連接5伏電源到CAN接頭上，例如用于外部總線轉換器
CAN總線連接上的電氣隔離達到300 V，分離每路CAN通道(只適用于PEH-003046 和 IPEH-003047)
工作溫度0 to 70 °C (32 to 158 °F)

發貨清單

PCAN-miniPCI CAN卡

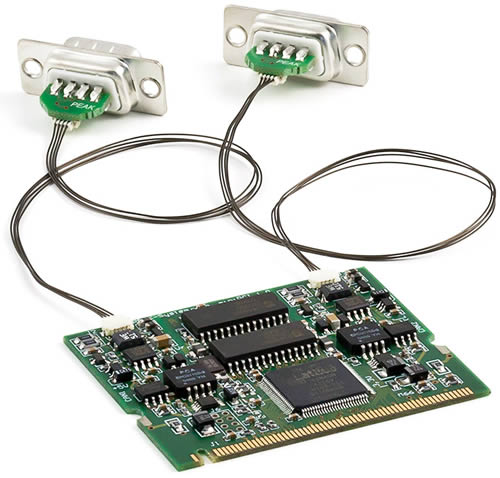

連接電纜包括每通道的D-Sub插頭
設備驅動 for Windows? 10, 8.1, 7 和 Linux (32/64-bit)
設備驅動 for Windows? CE 6.x (x86 and ARMv4 processor support)
CAN監視軟件 PCAN-View for Windows? 詳細 ...
用于開發CAN連接的編程接口PCAN-Basic 詳細 ...
使用手冊 PDF格式

訂貨信息

說明	編號
PCAN-miniPCI雙通道	IPEH-003045
PCAN-miniPCI 單通道光電解耦	IPEH-003046
PCAN-miniPCI 雙通道光電解耦	IPEH-003047

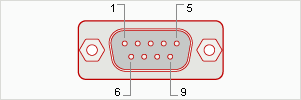

D-Sub引腳分配

引腳	引腳分配
1	無連接 / 可選 +5V
2	CAN-L
3	GND
4	無連接
5	無連接
6	GND
7	CAN-H
8	無連接
9	無連接

下載

Device driver setup for Windows PEAK-System installation package for device drivers and tools for Windows? 10, 8.1, 7 (32/64-bit) for our PC interfaces.	Download
Device driver for Linux Device drivers for PEAK CAN interfaces from Kernel 2.4 and higher.	Website
PCAN-miniPCI manual	English
PCAN-View Windows? software for displaying, transmitting, and recording CAN and CAN FD messages	Download
PCAN-Basic API API for the development of applications with CAN and CAN FD connections for Windows? 10, 8.1, 7 (32/64-Bit)	Download
PCAN-Basic API (Linux) API for the development of applications with CAN connection for Linux	Download
PCAN-CCP API API for the development of software for the communication with ECUs according to the CAN Calibration Protocol (CCP)	Download
PCAN-XCP API API for the development of software for the communication with ECUs according to the Universal Measurement and Calibration Protocol (XCP)	Download
PCAN-ISO-TP API API for the transfer of data packages according to ISO-TP (ISO 15765-2)	Download
PCAN-UDS API API to communicate with control devices according to UDS (ISO 14229-1)	Download
PCAN-OBD-2 API API for the vehicle diagnostics according to OBD-2 (ISO 15765-4)	Download
PCAN-PassThru API Pass-Thru API and connection of Pass-Thru software to PEAK CAN interfaces. Installation for Windows? 10, 8.1, 7 (32/64-bit) includes interface DLLs, a configuration software, the PCAN-Basic API, and the PCAN-ISO-TP API. The download also contains the documentation (English).	Download
Windows CE6 package PCAN-CE package for Microsoft Windows? CE 6.x	Download
Windows 2000 package Device drivers for Windows? 2000 and the CAN monitor PCAN-View.	Download
BaudTool Windows? software for calculating the BTR0/BTR1 baud rate register	Download

更多信息

PEAK-System Forum: Section for the PCAN-miniPCI card for questions and support
CAN device driver 4.x version history
CAN device driver CE 6.x version history
