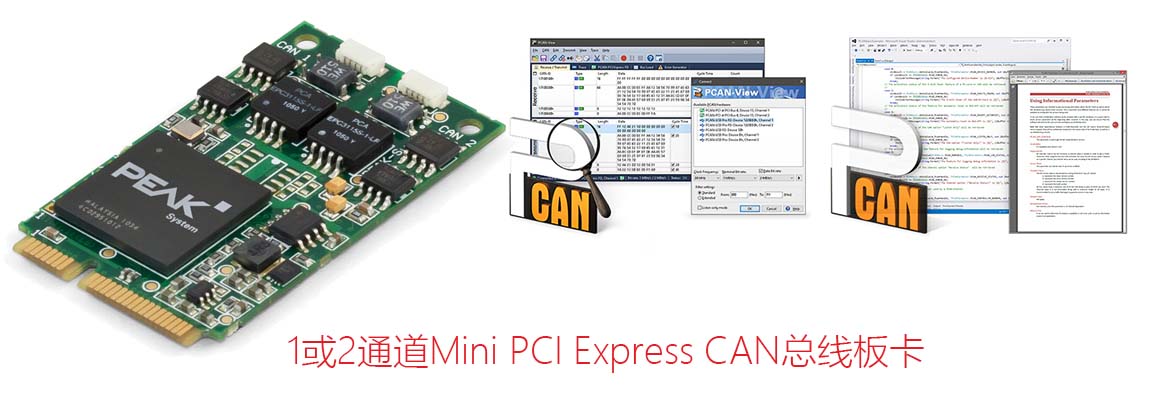

PCAN-miniPCIe：PCI Express Mini轉CAN接口卡

這款PCAN-miniPCIe CAN卡能夠把嵌入式電腦和帶有PCI Express Mini插槽的筆記本電腦連接到CAN總線網絡。

該CAN卡有單通道和雙通道型號。在電腦和CAN之間的電氣隔離達到300伏。

套裝內含CAN監視軟件PCAN-View for Windows和用于開發CAN連接的編程接口PCAN-Basic。

規格

CAN接口，用于PCI Express Mini插槽 (使用PCIe線路)
1或2路高速CAN通道 (ISO 11898-2)
通過連接電纜和D-Sub，9-引腳(依照CiA 303-1)連接到CAN總線
比特率從5 kbit/s至1 Mbit/s
符合CAN規范2.0A (11-bit ID) 和 2.0B (29-bit ID)
CAN控制器的FPGA實施 (SJA1000 可兼容)
NXP PCA82C251 CAN收發器
CAN連接上的電氣隔離高達300V，分開每個CAN通道
擴展工作溫度 -40 to 85 °C (-40 to 185 °F)

發貨清單

PCAN-miniPCIe CAN卡

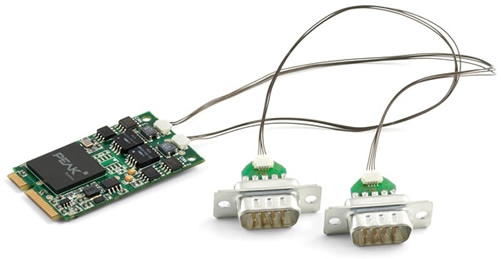

連接電纜包括D-Sub插頭用于每通道
設備驅動 for Windows? 10, 8.1, 7 and Linux (32/64-bit)
PCAN-View for Windows?CAN總線監視軟件
PCAN-Basic編程接口用于開發CAN總線連接應用程序
汽車領域標準化協議編程接口
PDF格式的說明書

訂貨信息

說明	貨號
PCAN-miniPCIe 單通道光電解耦	IPEH-003048
PCAN-miniPCIe 雙通道光電解耦	IPEH-003049

D-Sub引腳分配

引腳	引腳分配
1	無連接
2	CAN-L
3	GND
4	無連接
5	無連接
6	GND
7	CAN-H
8	無連接
9	無連接

更多信息

PEAK-System Forum: Section for the PCAN-miniPCIe card for questions and support
CAN device driver 4.x version history

Suitable to be used with:

PCIe-miniPCIe Adapter: PCI Express Low-Profile Adapter for PCI Express Mini Cards

下載

Device driver setup for Windows PEAK-System installation package for device drivers and tools for Windows? 10, 8.1, 7 (32/64-bit) for our PC interfaces.	Download
Device driver for Linux Device drivers for PEAK CAN interfaces from Kernel 2.4 and higher.	Website
PCAN-miniPCIe manual	English
PCAN-View Windows? software for displaying, transmitting, and recording CAN and CAN FD messages	Download
PCAN-Basic API API for the development of applications with CAN and CAN FD connections for Windows? 10, 8.1, 7 (32/64-Bit)	Download
PCAN-Basic API (Linux) API for the development of applications with CAN connection for Linux	Download
PCAN-CCP API API for the development of software for the communication with ECUs according to the CAN Calibration Protocol (CCP)	Download
PCAN-XCP API API for the development of software for the communication with ECUs according to the Universal Measurement and Calibration Protocol (XCP)	Download
PCAN-ISO-TP API API for the transfer of data packages according to ISO-TP (ISO 15765-2)	Download
PCAN-UDS API API to communicate with control devices according to UDS (ISO 14229-1)	Download
PCAN-OBD-2 API API for the vehicle diagnostics according to OBD-2 (ISO 15765-4)	Download
PCAN-PassThru API Pass-Thru API and connection of Pass-Thru software to PEAK CAN interfaces. Installation for Windows? 10, 8.1, 7 (32/64-bit) includes interface DLLs, a configuration software, the PCAN-Basic API, and the PCAN-ISO-TP API. The download also contains the documentation (English).	Download
Windows CE6 package PCAN-CE package for Microsoft Windows? CE 6.x	Download
Windows 2000 package Device drivers for Windows? 2000 and the CAN monitor PCAN-View.	Download
BaudTool Windows? software for calculating the BTR0/BTR1 baud rate register	Download
