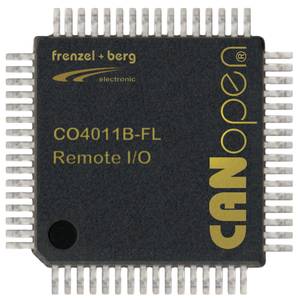

CANopen芯片CO4011

我們的CO4011 CANpopen-E/A-芯片為CANopen設備提供所有必需的功能。CANopen協議軟件實現已經做完并且經過測試，所以不需要附加的設備編程。節點數、波特率和設備配置的設置由外部電阻實現。

系統

• CPU 16 Bit
• supply voltage?5V DC
• temperature range -40 .. +105°C
• housing QFP64

數字和模擬輸入/輸出

• in-/ outputs? 32 max.
• filters for digital inputs configurable
• inputs digital 5V (max.)?20?of 32
• outputs digital 5V (max.)?20 of 32
• inputs analog 0 .. +5V (max.) 8 of 32
• supported modes:
  mode 0: 20 digital IN / 12 digital OUT
  mode 1: 12 digital IN / 12 digital OUT / 8 analog IN
  mode 2: 16 digital IN / 12 digital OUT / 4 analog IN
  mode 3: reserved
  mode 4: 12 digital IN / 20 digital OUT
  mode 5: 4 digital IN / 20 digital OUT / 8 analog IN
  mode 6: 8 digital IN / 20 digital OUT / 4 analog IN

功能

• output watchdog
• output overload monitoring

CANopen

• CAN-Bus V2.0b
• CAN-baudrates?up to 1Mbit
• nodenumber?1 .. 127
• CANopen draft standard DS301 V4.0 / DS401 V2.0
• CANopen diagnosis LEDs (LED outputs)
• PDOs receive/transmit 1/2
• SDOs server/client 1/0
• PDO-event timer
• PDO-inhibit timer
• PDO-transmission?mode?event triggered, synchron,?
  asynchron, cyclic, anti cyclic, remote frame
• variable PDO-identifier
• dynamic PDO-mapping
• emergency
• nodeguarding/lifeguarding/heartbeat
• objectdictionary / configuration storable
• minimum boot up
• EDS-file

訂貨說明

相關產品

即用: CO4011-BD

帶PWM輸出: CO4017A

測試用: 評估板

需要上述產品的詳細資料？請通過[email protected]聯系我們。
