NXSTK 50-RE
實時以太網接口的netSTICK
僅用于實驗室研發及測試
The network controller netX 50 with its 32 bit / 200 MHz ARM CPU offers a high computing
performance and controller functions for all leading fieldbusses and Real-time Ethernet systems.
It has an internal dual-port memory and can be connected without additional components
to a host system as communication interface. Together with a protocol stack and a
real-time kernel the complete function can be implemented easy and without development
risk.

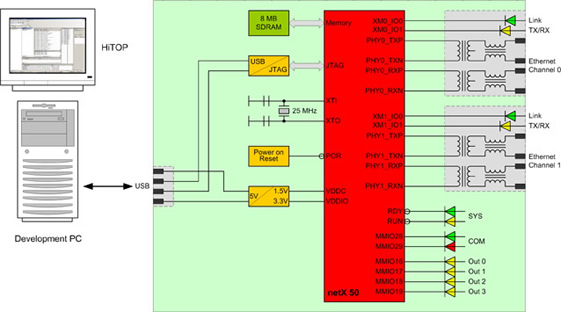

The easiest and cheapest possibility to evaluate the complete system and to add own
functions is given by the netSTICK. It contains a complete communication interface for
Real-time Ethernet respectively the fieldbusses PROFIBUS, DeviceNet or CC-Link and 8
MByte memory. It is realised as a type of a memory stick and is connected and used at the
USB port of a PC. It contains an integrated debug interface and is shipped together with
the HiTOP development environment of company Hitex. The provided Insider's Guide document
contains beside comprehensive explanations and background information step by
step instructions how write an application program with the license free real-time kernel rcX
or how to load a protocol stack into the netSTICK and execute it. For this, HiTOP offers with
its integrated GNU compiler a comfortable development and debugging environment. You
can develop code unrestricted and load this for testing by the provided HiTOP to the
netSTICK only.

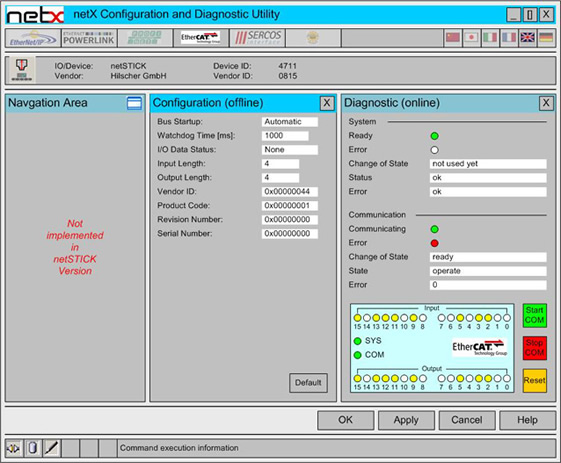

The ‘netX Configuration and Diagnostic Utility’ is provided in source code and allows to use
the netSTICK as easy IO device with 16 digital input and output for different networks
protocols.
 優點
- 低成本的netX 50開發系統，具有實時以太網或PROFIBUS/DeviceNet/CC-Link接口
- 集成Debug接口
- HiTOP軟件開發與調試環境
- 基于netX的網絡協議和應用的開發測試
- 價格合理、易于操作而且極其完整
- 詳細的開發指南
| 產品
|
| NXSTK 50-RE |
| 描述 |
|
實時以太網接口的netSTICK
僅用于實驗室研發及測試 |
| |
| |
| CPU |
|
netX 50 |
| 存儲設備 |
|
8 MB SDRAM |
| 顯示 |
|
LED系統指示燈
LED通訊指示燈 |
| 輸出 |
|
Out 0-3，LED |
| PC接口 |
|
USB Device V1.1 / Type A |
| 通訊接口 1 |
|
2x Ethernet 100 BASE.TX,RJ45 |
| 操作電壓 |
|
+5V/500 mA，通過USB供電 |
| 操作溫度 |
|
0 °C - 55 °C |
| 尺寸（L x W x H） |
|
110 x 34 x 14 mm |
|
