網關netBRICK：NB 100-RE-DN
netBRICK – 高防護等級網關系列
netBRICK is the gateway solution for applications in harsh industrial environments and enables shifting classic cabinet installations directly into the field. Whether in outdoor, humid or hazardous areas, fully moulded, assembled with M12 connectors and IP67 compliant the rugged-line gateway resists most extreme environmental conditions.

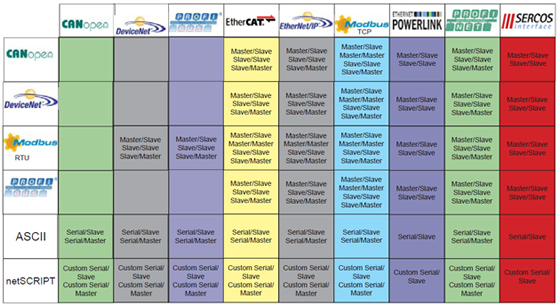

netBRICK is firmware compatible to the IP20 compliant gateway netTAP 100 and converts the most estblished Real-Time Ethernet/Ethernet, Fieldbus and serial protocols used in the automation industry.
netBRICK is configured and diagnosed by the FDT/DTM based planning, configuration and documentation
tool SYCON.net. A USB port embedded into a M16 socket with blind plug serves as service interface. LED
indicators allow on site rapid visual diagnostics.
The M12 connectors of each netBRICK variant are network specific wired in accordance with the respective
specification. As a pair two of them are assigned to one network and are internally wired together. This allows
realizing simple line structures without a need for T-connectors. An additional M12 connector serves to connect the 24 V supply voltage.
The robust and compact housing for simple screw mounting and the high flexibility of loadable firmware
modules are making netBRICK a unique and most powerful gateway on the market applicable for any field
installation in the automation industry.
 優點
- 適用于惡劣工業環境，直接現場安裝
- IP67防護等級，完全模塊化封裝，M12接口
- 實時以太網/以太網轉現場總線，RS232/422/485串口轉現場總線或
實時以太網/以太網
- UL及船級社認證
- 基于FDT/DTM技術的配置與診斷工具
- USB服務口
| 產品
|
| NB 100-RE-DN |
| 描述 |
|
netBRICK – 高防護等級網關系列 |
| |
| |
| 診斷接口 |
|
Mini USB |
| LED顯示 |
|
SYS, APL, 協議相關指示燈 |
| 操作電壓 |
|
18 - 30 V / 24V時130 mA |
| 電源接口 |
|
5針M12接口，A-coded |
| 操作溫度 |
|
-20°C...70°C |
| 安裝 |
|
螺釘安裝 |
| 重量 |
|
350g |
| CE認證 |
|
是的 |
| 接口 |
|
CAN協議，M12接口，A-coded
以太網，D-coded
PROFIBUS，M12接口，B-coded |
| UL及船級社認證 |
|
通過 |
| 噪聲輻射 |
|
CISPR 11 Classe A CISPR 11 Classe A |
| 防噪聲 |
|
EN 61131-2: 2003 |
|
|
