For temperature transducers and monitoring system MSx
Tolerance of probes ± ( 0.15 + 0.002 * t ) °C - class A in accordance with IEC751
Low cost multi-purpose watertight (IP67) probe -30 to +80°C, stainless steel 17241 with PVC cable of specified length. Diameter 5.7mm, length 40mm. Cable lengths 1,2,5 or 10 meters available.
Time response t63<10s, t95<30s, measured in fluid.
Time response t63<60s, t95<150s, measured in airflow 1m/s.
type Pt1000TGL40/0 - cable with tin coated wires
|
Multi-purpose watertight (IP67) probe -80 to +200°C, stainless steel 17241 with silicone cable of specified length. Diameter 5.7mm, length 40mm. Cable lengths 1,2,5 or 10 meters available.
Time response t63<10s, t95<30s, measured in fluid.
Time response t63<60s, t95<150s, measured in airflow 1m/s.
type Pt1000TG8/0 - cable with tin coated wires
|

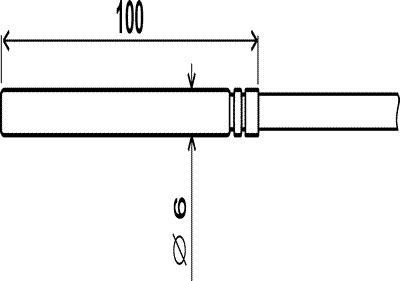

Multi-purpose probe e.g. for dryers, soldering machines etc. Measuring range 0 to 350°C, short term up to 400°C. Cable with metal shielding is resistant up to 400°C. Cable lengths 1,2,5 or 10 meters available. Probe is not resistant against moisture.
type Pt1000TR050/0 - cable with tin coated wires
|
Brass surface probe with cable of specified length, range from -30 to +200°C. Diameter 18mm, width 6.5mm. Mounting by a M4 srew or fixing by a self adhesive tape. Cable lengths 1,2,5 or 10 meters available. Probe is not resistant against moisture.
type Pt1000TG7/0 - cable with tin coated wires
|
Multi purpose probe -30 to +150°C with 1 meter cable. Probe is not resistant against moisture.
type 2021-150/0 - cable with tin coated wires
|

Hand held pointed tip probe -30 to +220°C with 1 meter cable. Probe is not resistant against moisture. Time response t63<10s, t95<30s, measured in fluid.
type 2301-250/0 - cable with tin coated wires
|
Hand-held pointed tip probe -30 to +200°C, stainless steel 17241 for food industry with teflon handle and silicon cable 1 meter, IP67. Time response t63<7s, t95<15s, measured in fluid.
type 2061-200/0 - cable with tin coated wires
Hand-held pointed tip probe -30 to +250°C, stainless steel 17241 for food industry with teflon handle and teflon cable 1 meter, IP67. Time response t63<7s, t95<15s, measured in fluid.
type 2061-250/0 - cable with tin coated wires
|

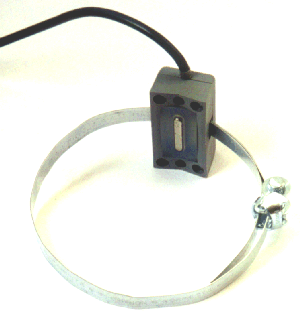

Surface probe for tubing and flat surface, range from -30 to +130°C, 2 meters cable, IP65
type PTS350-2/0 - cable with tin coated wires
|
|
