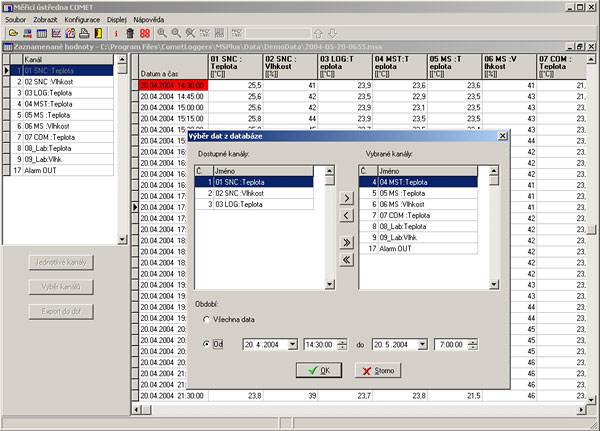

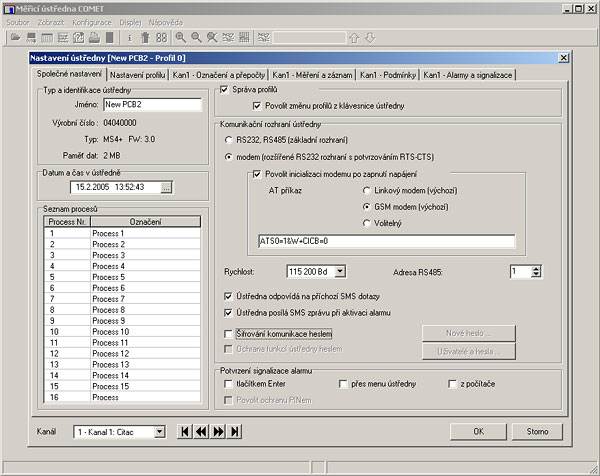

Software is designed for communication with MS5D, MS5 loggers through serial link RS232, USB port, RS485 network, Ethernet interface or via a modem. It enables reading information on actual state and configuration of logger, modifying logger parameters, reading measured values from logger′s memory and displaying of actual values from logger′s inputs. It is possible to view and print out recorded values in numerical and graphical formats.
Other features:
- viewing and printing of any selected part of measured values
- user adjustable axis scale of graphs, color and width of curves, margin size and other parameters
- printing all curves from input channels together or one by one or to devide graph to several sheets with adjustable length

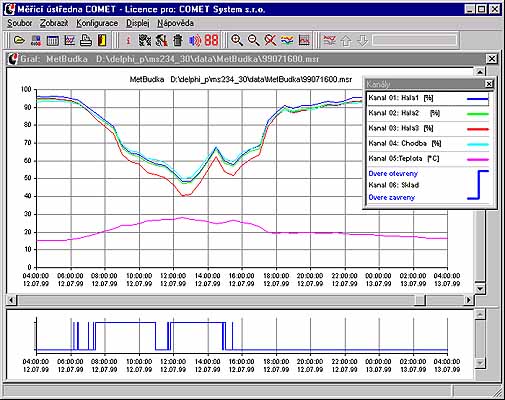

- two-level curves from binary inputs are displayed in special graph
- color distinction of values outside of adjusted alarm limits in numerical list and graph
- export of data to dbf or txt formats for consequent proccessing in other programs (Microsoft Excel)

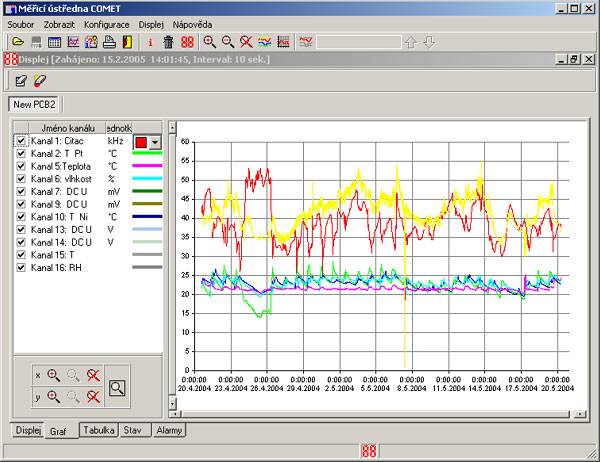

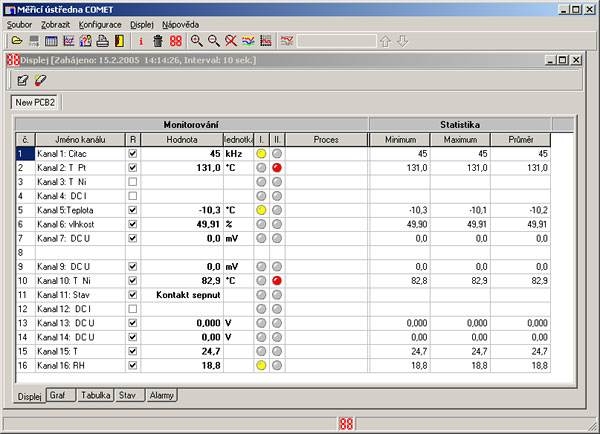

In "Display" mode it is possible to display actual values from inputs and actual alarm states (similar with display located on logger). Software enables to protect access to some actions (clearing logger memory, configuration etc.) by password. Automatic data reading from logger to PC in preprogrammed intervals is also possible.
Minimum system requirements:
Operational system Windows 98 and newer, graphic resolution 800x600, approximately 10MB of hard disk free space, processor Pentium 166MHz minimum, minimum 32MB RAM.
Recommended:
processor 1GHz minimum, RAM 128MB minimum
