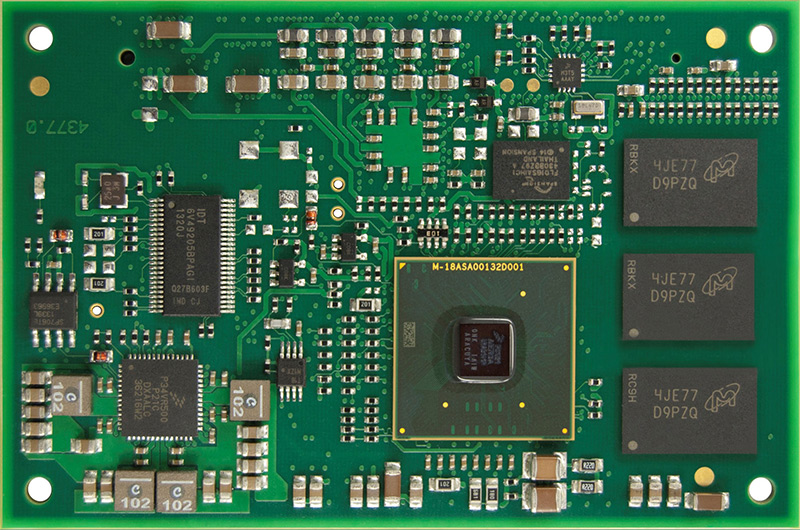

模塊特點
| 核架構 |
QorIQ LS1021A, dual-core ARM Cortex?-A7 with 1GHz, FPU and Neon co-processor |
| RAM |
1GiB DDR3L-1600MT (opt. ECC) |
| Flash |
128MiB QSPI |
| 通訊 |
3x1GbE (1 PHY on-board), 4xCAN, USB 3.0, 2xPCIe, 7xUART, 2xUCC ULite QUICC Engine (32-bit RISC Co-Prozessor) |
| Mass Storage |
SATA 3.0, eSDHC/MMC/eMMC |
| 視頻 |
12-bit dual-edge LCD interface (24-bit RGB) |
| 音頻 |
4xI2S/ASRC/SPDIF |
| I/O |
FlexTimer (PWM, CNT, ENC), I2C, SPI, GPIO, ADC, 8/16-bit A/D-Bus (FPGA) |
| 外設 |
Temperatur, RTC |
| 板連接器 |
220-pin, COM Express connector with proprietary pinout |
| 板尺寸 |
55 x 84 (L x W in mm) |
| 耗電 |
apx. 4.5W (typically under load) |
| 溫度范圍 |
-40°C…85°C (Storage: -55°C…125°C) |
| MTBF預測 |
650.000h @ 40°C |
| 可用性 |
15 years (Freescale Longevity Program) |
| 溫度管理 |
Single heat spreader plate, passive cooling |
| 安全性和IP保護 |
Fuses, QorIQ Trust Architecture,
Sold separately: Secure Boot, Firmware Protection |

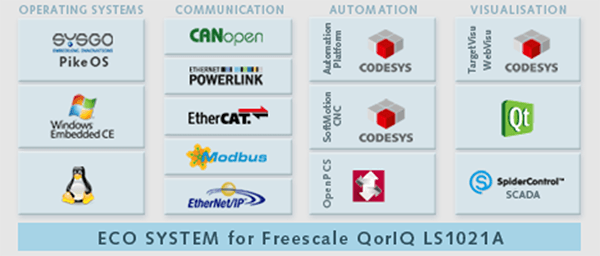

| 中間件 |
單賣: IEC 61131-3 runtime system (CODESYS V3 or OpenPCS)
Target- and/or Web-based visualization |
| 通訊協議 |
按需分開提供: POWERLINK, CANopen, EtherCAT, Profinet, Profibus, Modbus |
|
|
