分布式輸入/輸出模塊

分布式輸入/輸出模塊可創建分布式控制系統，通過增加一些I/O信號實現技術目標和擴展PLC的功能。

這些模塊也可以連接到我們的KPA EtherCAT 4CAN網關上。

另外：這些模塊全部兼容以前的Selectron Systems AG生產的Selectron I/O-devices。

4通道模擬信號輸入模塊VSAI-4

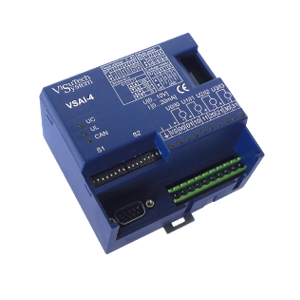

(fully compatible with Selectron AIC 701 produced by Selectron Systems AG) with 4 isolated analog inputs serves to receive signals of either direct current or direct voltage or both from sensors and transform them into numeric code through each of the four inputs. Data exchange with Master PLC is executed through a serial communication channel based on CAN-interface (ISO 11898). Control and communication scheme is galvanically detached from the output signals scheme.

Main technical characteristics of VSAI-4:

Parameter	Value
Supply voltage, V	Nominal: constant voltage +24 Tolerance range: constant voltage +18..30
Input signal type	Analog
Output signal type	Digital
Number of independently controlled outputs	4
Voltage range of input signals, V	from 0 to +10
Current range of input signals, mA	from 0 to 20
Maximum wattage, W	2,5
Operation temperature range	from 0 to +55°С
Protection class rating	IP40
Data transfer interface	CAN (ISO 11898)
Data transfer maximum speed, Mbit/s	1
Fixing and mounting, mm	DIN-rail, 35
Overall dimensions, mm	100х92х60
Maximum weight, g	230

4通道模擬信號輸出模塊VSAO-4

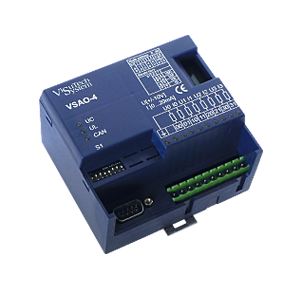

(fully compatible with Selectron AOC 701 produced by Selectron Systems AG) with 4 isolated analog outputs serves to form permanent signals of either direct current or direct voltage or both through each of the four independent outputs. Data exchange with Master PLC is executed through a serial communication channel based on CAN-interface (ISO 11898). Control and communication scheme is galvanically detached from the output signals scheme.

Main technical characteristics of VSAO-4:

Parameter	Value
Supply voltage, V	Nominal: constant voltage +24 Tolerance range: constant voltage +18..30
Input signal type	Digital
Output signal type	Analog
Number of independently controlled outputs	4
Voltage range of output signals, V	from -10 to +10
Current range of output signals, mA	from 0 to 20
Minimum voltage load resistance, kOhm	2
Maximum current load resistance, Ohm	300
Maximum wattage, W	2,5
Operation temperature range	from 0 to +55°С
Protection class rating	IP40
Data transfer interface	CAN (ISO 11898)
Data transfer maximum speed, Mbit/s	1
Fixing and mounting, mm	DIN-rail, 35
Overall dimensions, mm	100х92х60
Maximum weight, g	230

8通道分立式信號輸入模塊VSDI-8

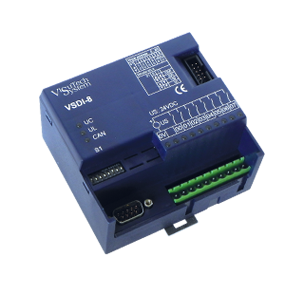

(fully compatible with Selectron DIC 701 produced by Selectron Systems AG) serves to receive discrete signals from sensors through each of the eight inputs. Data exchange with Master PLC is executed through a serial communication channel based on CAN-interface (ISO 11898). Control and communication scheme is galvanically detached from the input signals scheme.

Main technical characteristics of VSDI-8:

Parameter	Value
Supply voltage, V	Nominal: constant voltage +24 Tolerance range: constant voltage +18..30
Input signal type	Digital
Output signal type	Digital
Number of independently controlled inputs	8
Voltage range of input signals, V	from 0 to +24
Minimum level of logical “1”, V	+14
Maximum level of logical “0”, V	+5
Indication of output signal state	LED
Maximum wattage, W	2,5
Operation temperature range	from 0 to +55°С
Protection class rating	IP40
Data transfer interface	CAN (ISO 11898)
Maximum data transfer speed, Mbit/s	1
Fixing and mounting, mm	DIN-rail, 35
Overall dimensions, mm	100х92х60 мм
Maximum weight, g	230

8通道分立式信號輸出模塊VSDO-8

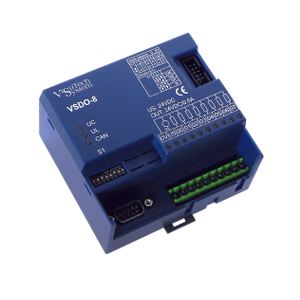

(fully compatible with Selectron DOC 701 produced by Selectron Systems AG) serves to send discrete signals to the executing devices through each of the eight independently controlled outputs. Data exchange with Master PLC is executed through a serial communication channel based on CAN-interface (ISO 11898). Control and communication scheme is galvanically detached from the output signals scheme.

Main technical characteristics of VSDO-8:

Parameter	Value
Supply voltage, V	Nominal: constant voltage +24 Tolerance range: constant voltage +18..30
Input signal type	Digital
Output signal type	Digital
Number of independently controlled outputs	8
Maximum load current on one channel, A	0,5
Minimum load current, A	4
Minimum output level of logical “1”, V	18
Maximum output level of logical “0”, V	2
Maximum wattage, W	2,5
Operation temperature range	from 0 to +55°С
Protection class rating	IP40
Data transfer interface	CAN (ISO 11898)
Data transfer maximum speed, Mbit/s	1
Fixing and mounting, mm	DIN-rail, 35
Overall dimensions, mm	100х92х60
Maximum weight, g	230
Indication of output signal state	LED
